Nakamichi 1000ZXL

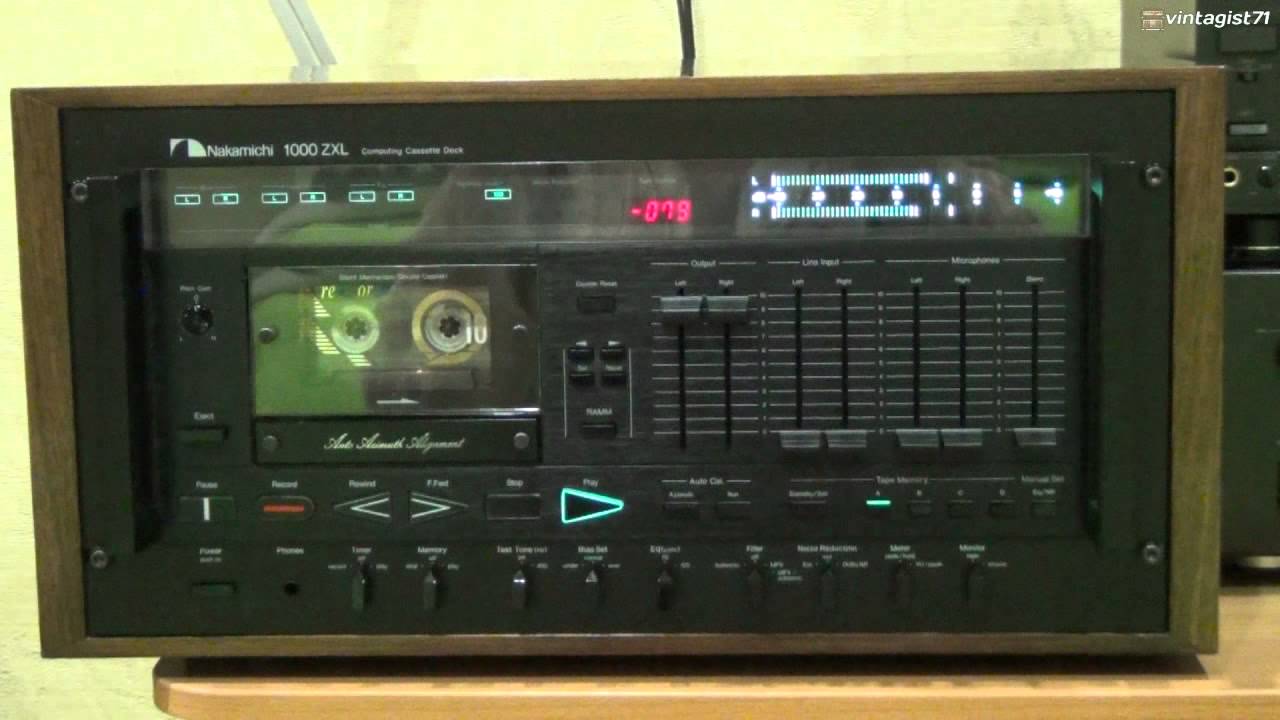

Топовая кассетная дека 1980 года выпуска Nakamichi 1000ZXL. Стоимость на момент производства составляла 550,000 ¥ Дека оснащена 8-ми битным микрокомпьютером для настройки оптимальных значений под разные типы ленты. Спецификация: Model : Stereo cassette deck Track system : 4 track 2ch Head configuration : Erasing, recording, playback head three independent Motor : Capstan servo PLL × 1 Reel drive × 1 Tape speed : 4.8cm / s Wow and flutter : Wrms 0.04% or less Wpeak 0.08% or less Frequency characteristics (ABLE used) : 20Hz ~ 20000Hz ± 0.75dB 18Hz ~ 25000Hz ± 3dB (Nakamichi EX, EX II, SX, ZX tape, recording level-20dB) General S / N ratio : 66dB or more (3% THD) More than 60dB (0dB) (IHF-A, Wrms, 400Hz, Dolby NR, ZX tape, 70μs) Overall distortion : 0.8% or less (ZX tape) (SX, EX II tape) 1.0% (400Hz, 8dB) Erasure rate : 60dB or more (100Hz) Channel separation : (1kHz, 0dB) 37dB or more Bias frequency : 105kHz Input : 50mV 50kΩ (line) 0.2mV 10kΩ (microphone) 100mV 50kΩ (Noise Reduction) Output : 1V (400Hz, 0dB, maximum output level, line) 45mW (400Hz, 0dB, maximum output level, microphone) 100mV, 2.2kΩ (Noise Reduction) Tape selector : (Manual switching, bias three-stage, two-stage equalizer) automatic adjustment Attached organization : Automatic adjustment ABLE azimuth, bias, level, the equalizer RAMM (automatic indexing mechanism) Power : 100V 50/60Hz Power consumption : Up to 60W External dimensions : 258mm × 322mm × 522mm Weight : About 19kg Optional : Remote Control Unit RM-300 (¥ 28,000) (Corresponding to the Dolby C type) NR-100 В ролике звучит: "Richard Marx-Right Here Waiting", Звукозапись правообладатель: UMG Запись производилась с линейного выхода деки.
