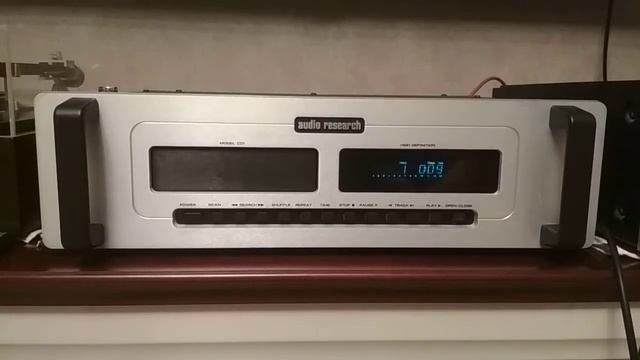

Audio Research CD1
Продаю американский винтажный CD-проигрыватель Audio Research CD1. Модель 1995 года. Отличное состояние. Без пульта д/у. Технические характеристики: OUTPUTS, ANALOG: (Stereo) 1. Balanced XLR 4.2V RMS (±12.5dBv) max. 2. Unbalanced RCA 2.1V RMS (±6dBv) max. OUTPUT IMPEDANCE: (Analog) 350 ohms balanced, 175 ohms unbalanced FREQUENCY RESPONSE: 0.1-20,000Hz±0.2dB SIGNAL TO NOISE RATIO: 95dBA DISTORTION: -80dB (0.01%) 1kHz CHANNEL SEPARATION: 94dB 1kHz PHASE LINEARITY: ±0.5° 20-20,000kHz OUTPUTS, DIGITAL: (to external Digital-to-Analog Converter) 1. XLR Balanced AES/EBU 110-ohm 4V P-P 2. BNC coax SPDIF 75-ohm 0.7V P-P 3. TOSLINK fiber optical -19dBm, 660nm. 4. ST-type glass fiber optical -12dBm, 875nm, 62.5/125μm fibers. SIGNAL FORMAT (disc): Sampling frequency: 44.1kHz Quantization Bit: 16bit linear per channel Channel bit rate: 4.3218Mb/sec. Channel modulation code: EFM (8-14 modulation). Error correction: CIRC (cross interleave Reed Solomon Code). DRIVE MECHANISM: Wow & Flutter: Unmeasurable (Quartz stability). Discs: Accept 5" (12cm) and 3" (8cm) sizes. OPTICAL PICKUP: Type: 3-beam LDGU with holographic diffraction light pen Laser: GaAIAs semiconductor, 780nm, 0.5mW max output Servo: Digitally-controlled low-inertia linear positioning actuator. DIGITAL MICROPROCESSOR: 1. Servo/Control microprocessor 2. Signal data microprocessor DIMENSIONS: 19" (48cm) W x 5 1/4" (13.4cm) H x 11 3/4" (29.8cm) D. Handles extand 1 1/2" (3.8cm) forward on the front panel. Rear connectors extand 3/4" (1.9cm). WEIGHT: 17 lbs (7.7kg) Net
