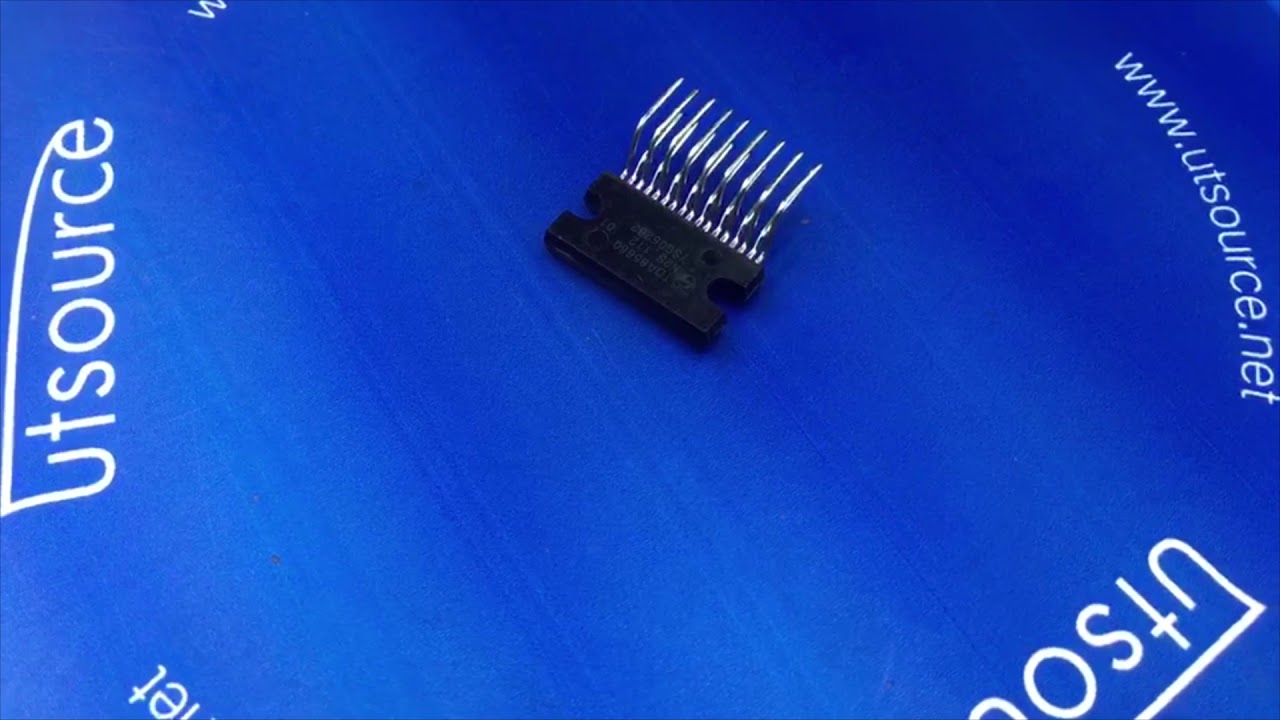

TDA8566Q
Online Store: https://www.utsource.net Product Link:https://www.utsource.net/itm/p/1358963.html TDA8566Q 2 × 25 W BTL stereo car radio power amplifier with differential inputs and diagnostic outputs FEATURES ● Differential inputs ● Very high Common Mode Rejection Ratio (CMRR) ● High common mode input signal handling ● Requires very few external components ● High output power ● 4 Ω and 2 Ω load driving capability ● Low offset voltage at output ● Fixed gain ● Diagnostic facility (distortion, short-circuit and temperature pre-warning) ● Good ripple rejection ● Mode select switch (operating, mute and standby) ● Load dump protection ● Short-circuit proof to ground, to VP and across the load ● Low power dissipation in any short-circuit condition ● Thermally protected ● Reverse polarity safe ● Protected against electrostatic discharge ● No switch-on/switch-off plop ● Flexible leads ● Low thermal resistance. GENERAL DESCRIPTION The TDA8566Q is an integrated class-B output amplifier contained in a 17-lead single-in-line (SIL; bent to DIL) plastic power package. The device contains two amplifiers in a Bridge-Tied Load configuration (BTL). The output power is 2 × 25 W in a 4Ω load or 2 × 40 W in a 2Ω load. It has a differential input stage and two diagnostic outputs. The device is primarily developed for car radio applications. Utsource offer high-quality products, competitive price with convenient shipping. Know more about Utsource：https://www.youtube.com/watch?v=tmJQq0FS9y8 Subscribe to Utsource channel: https://www.youtube.com/channel/UCsWmWwb0S68rruOf8ebN8JQ/featured Contact us:Email: sales@utsource.com Follow us: Facebook: https://www.facebook.com/utsource.net Twitter: https://twitter.com/pantiejun LinkedIn: https://www.linkedin.com/company/utsource/ ВКонтакте: https://vk.com/utsource Instagram: https://www.instagram.com/utsource_official/ Pinterest: https://www.pinterest.com/bestutsource
