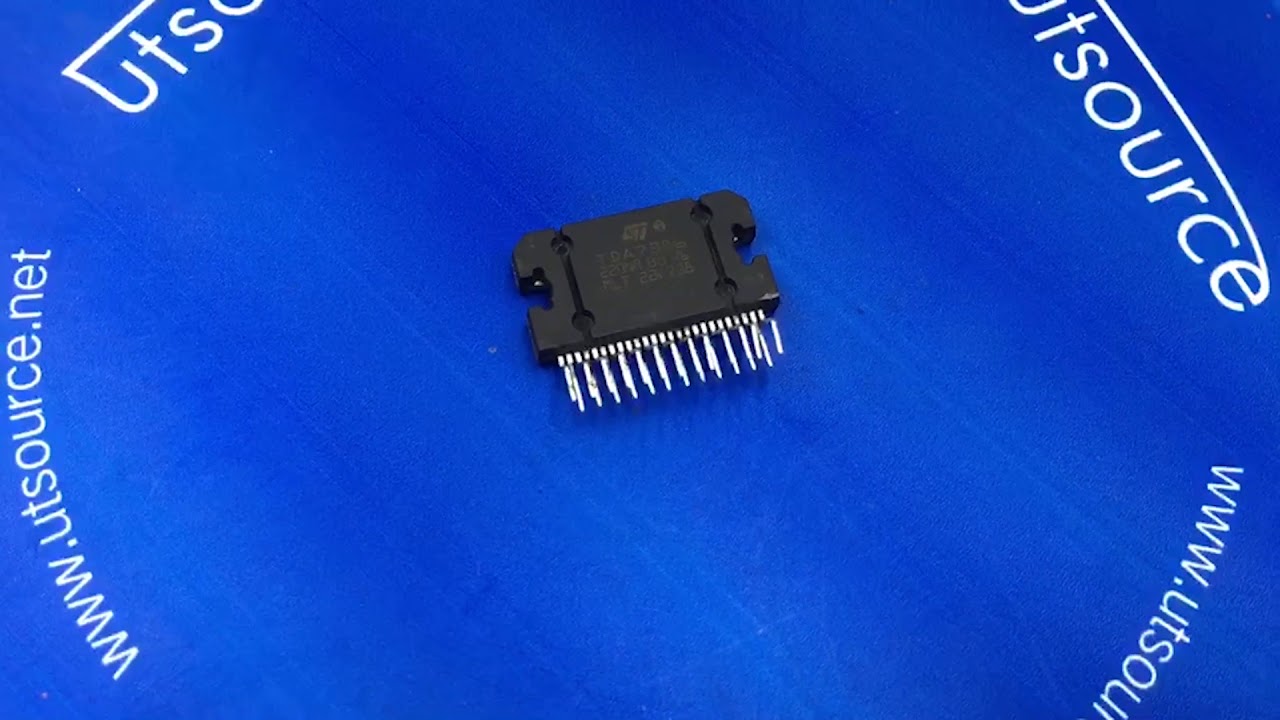

TDA7386
Online Store: https://www.utsource.net Product Link:https://www.utsource.net/itm/p/1267988.html Features ● High output power capability: ● 4 x 45W/4Ω max. ● 4 x 28W/4Ω @ 14.4V, 1KHz, 10% ● 4 x 24W/4Ω @ 13.2V, 1KHz, 10% ● Low distortion ● Low output noise ● St-by function ● Mute function ● Automute at min. supply voltage detection ● Low external component count: – Internally fixed gain (26dB) – No external compensation – No bootstrap capacitors Protections ● Output short circuit to GND, to VS, across the load ● Very inductive loads ● Overrating chip temperature with soft thermal limiter ● Load dump voltage ● Fortuitous open GND ● Reversed battery ● ESD Description The TDA7386 is a new technology class AB audio power amplifier in Flexiwatt 25 package designed for high end car radio applications. Thanks to the fully complementary PNP/NPN output configuration the TDA7386 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compact sets. Utsource offer high-quality products, competitive price with convenient shipping. Know more about Utsource：https://www.youtube.com/watch?v=tmJQq0FS9y8 Subscribe to Utsource channel: https://www.youtube.com/channel/UCsWmWwb0S68rruOf8ebN8JQ/featured Contact us:Email: sales@utsource.com Follow us: Facebook: https://www.facebook.com/utsource.net Twitter: https://twitter.com/pantiejun LinkedIn: https://www.linkedin.com/company/utsource/ ВКонтакте: https://vk.com/utsource Instagram: https://www.instagram.com/utsource_official/ Pinterest: https://www.pinterest.com/bestutsource
