Replace the USB Board | HP ENVY m6-w100 x360 Convertible PC | HP

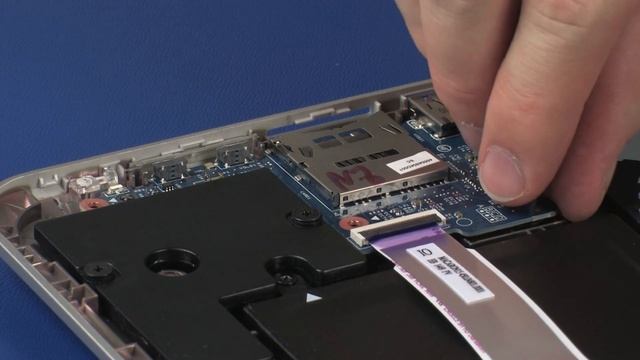

Learn how to replace the usb board for the HP ENVY m6-w100 x360 Convertible PC. For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at http://hp.com/support. Note: The following video depicts a specific configuration of the notebook. The same removal and replacement procedures apply to all configurations of the notebook. Before you begin: Remove the top cover. Removal: IMPORTANT: Ensure the battery cable is disconnected from its connector on the system board. Using minimal force, lift the locking bar up on the USB board ZIF connector and disconnect the USB board ribbon cable from the system board. CAUTION! Use care to prevent damaging the ZIF connector and ribbon cable. Remove the USB board ribbon cable from the adhesive that secures it to the battery. Remove the foam pad that covers the storage drive activity LED on the USB board. Remove the two 3 mm P1 Phillips-head screws that secure the USB board to the base enclosure. Lift the USB board off of the alignment pins on the base enclosure and remove. Place the USB board in a static-dissipative bag. Replacement: Remove the USB board from the static-dissipative bag. Place the USB board onto its alignment pins on the base enclosure. Replace the two 3 mm P1 Phillips-head screws that secure the USB board to the base enclosure. Place the foam pad into position above the storage drive activity LED on the USB board. Insert the USB board ribbon cable into the USB board ZIF connector on the system board and press the locking bar down to lock the cable into place. CAUTION! Use care to prevent damaging the ZIF connector and ribbon cable. Apply pressure to the length of the USB board ribbon cable to adhere it to the battery. Caution: Improperly installing or replacing parts could damage your HP device or void your warranty. Before replacing any parts, check your warranty. Continue the Conversation: http://hp.care/SupportForums http://hp.care/FacebookSupport http://hp.care/TwitterSupport #HPSupport #HPComputerService #HPenvyConvertiblePC #HP SUBSCRIBE: www.youtube.com/HPSupport SHOP NOW: https://www.hp.com/online-store HP PARTS STORE: https://parts.hp.com About HP: HP Inc. creates technology that makes life better for everyone everywhere - every person, every organization, and every community around the globe. Through our portfolio of printers, PCs, mobile devices, solutions, and services, we engineer experiences that amaze. Connect with HP: Visit HP WEBSITE: http://www.hp.com Like HP on FACEBOOK: https://www.facebook.com/HP Follow HP on TWITTER: https://twitter.com/HP Follow HP on INSTAGRAM: https://www.instagram.com/hp Follow HP on LINKEDIN: https://www.linkedin.com/company/hp
Learn how to replace the usb board for the HP ENVY m6-w100 x360 Convertible PC. For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at http://hp.com/support. Note: The following video depicts a specific configuration of the notebook. The same removal and replacement procedures apply to all configurations of the notebook. Before you begin: Remove the top cover. Removal: IMPORTANT: Ensure the battery cable is disconnected from its connector on the system board. Using minimal force, lift the locking bar up on the USB board ZIF connector and disconnect the USB board ribbon cable from the system board. CAUTION! Use care to prevent damaging the ZIF connector and ribbon cable. Remove the USB board ribbon cable from the adhesive that secures it to the battery. Remove the foam pad that covers the storage drive activity LED on the USB board. Remove the two 3 mm P1 Phillips-head screws that secure the USB board to the base enclosure. Lift the USB board off of the alignment pins on the base enclosure and remove. Place the USB board in a static-dissipative bag. Replacement: Remove the USB board from the static-dissipative bag. Place the USB board onto its alignment pins on the base enclosure. Replace the two 3 mm P1 Phillips-head screws that secure the USB board to the base enclosure. Place the foam pad into position above the storage drive activity LED on the USB board. Insert the USB board ribbon cable into the USB board ZIF connector on the system board and press the locking bar down to lock the cable into place. CAUTION! Use care to prevent damaging the ZIF connector and ribbon cable. Apply pressure to the length of the USB board ribbon cable to adhere it to the battery. Caution: Improperly installing or replacing parts could damage your HP device or void your warranty. Before replacing any parts, check your warranty. Continue the Conversation: http://hp.care/SupportForums http://hp.care/FacebookSupport http://hp.care/TwitterSupport #HPSupport #HPComputerService #HPenvyConvertiblePC #HP SUBSCRIBE: www.youtube.com/HPSupport SHOP NOW: https://www.hp.com/online-store HP PARTS STORE: https://parts.hp.com About HP: HP Inc. creates technology that makes life better for everyone everywhere - every person, every organization, and every community around the globe. Through our portfolio of printers, PCs, mobile devices, solutions, and services, we engineer experiences that amaze. Connect with HP: Visit HP WEBSITE: http://www.hp.com Like HP on FACEBOOK: https://www.facebook.com/HP Follow HP on TWITTER: https://twitter.com/HP Follow HP on INSTAGRAM: https://www.instagram.com/hp Follow HP on LINKEDIN: https://www.linkedin.com/company/hp
