12 band Equalizer, Compressor, Echo, Noise Gate for Icom, Yaesu, Kenwood - EQ V.8

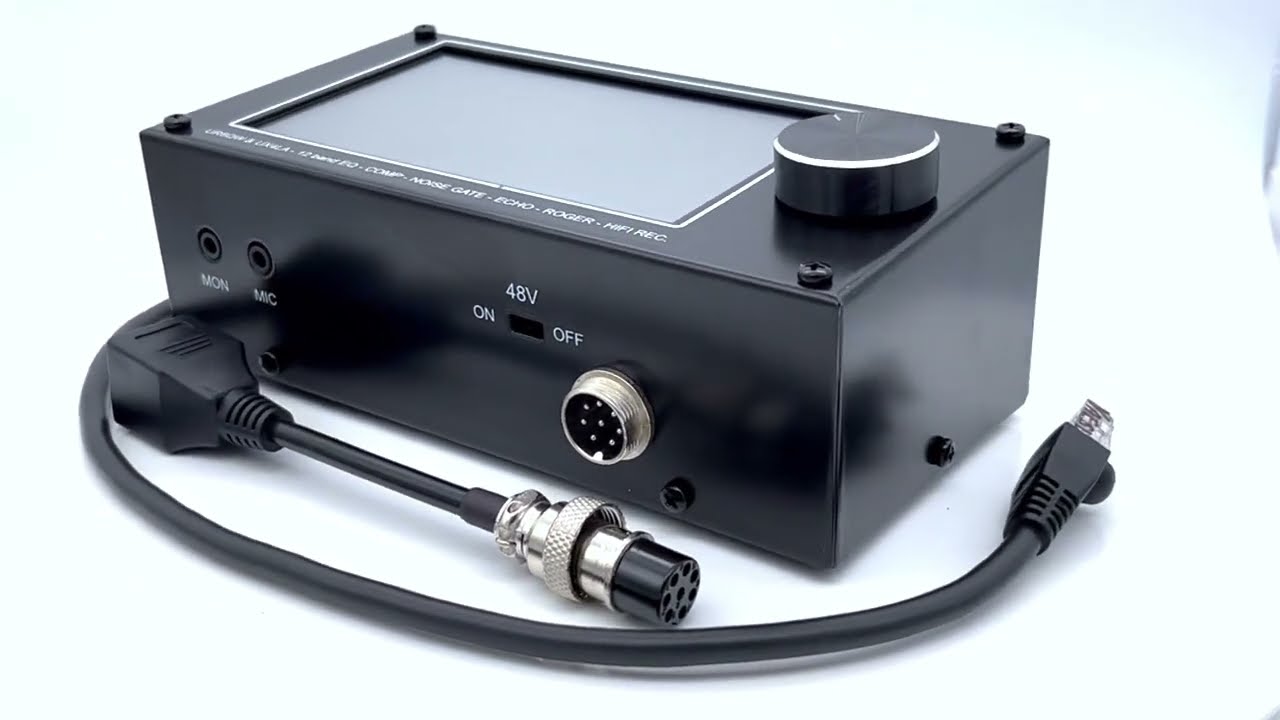

12 band Equalizer, Compressor, Echo, Noise Gate, Phase rotator, Recorder, AFC graf, 5" LCD - is EQ V.8. Support connection for Icom, Yaesu, Kenwood - etc. On the video shown device for transceiver with RJ45 connection, but can be for 8pin pole and other. The transceiver usually has a classic equalizer that is not able to equalize adjacent frequencies in a narrow range. As a result, if a dynamic microphone is connected directly to the transceiver, the signal may have a dull tone at low frequencies and may whistle at high frequencies. Any expensive studio microphone can’t sound any better without audio processing than a cheap one with audio processing. The V.8 has with a host of audio processing blocks to make your signal stand out! Of course, having complex signal processing blocks, you need to study a lot of information in order to clearly understand how it works and how to set it up correctly. In the V.8 device, there is no need to configure a bunch of blocks, we did it for you, leaving only a part available to the user, where you can change the settings. The device has two independent low-noise microphone amplifiers with two independent inputs for various types of microphones. This is a universal device, any microphone can be connected to it: • Elecret • Dynamic • Condencer (48V Power supply) • Hand mic EQ has a big 5" color touch screen display. Specifications Specifications • + 48V phantom power supply for the Condenser Microphone (maybe in the range of + 35 + 48V). Present on all versions, сan be disabled programmatically or mechanically by a switch inside • ADC/DAC resolution 24 Bits • Audio bandwidth:5.2kHz (Normal Mode), 3.2kHz (DX Mode), 8kHz (Wide for CB), 8kHz (Bypass) • Mains hum suppression (50Hz & 60Hz) - more 30dB • Input: switchable with the ability to turn on bias voltage for the microphone Microphone amplifier: two independent, one with a balanced input, the second with an unbalanced input. Adjustable gain 0 + 40dB • Microphone available: Electret, Dynamic, Condenser. +10dB boost feature for low sensitive microphones • Adjustable noise Gate can be disabled. Threshold adjustment range: -70 to -30dB • Background noise suppression efficiency: up to 20dB • Compressor: Ratio adjustable 1:1 - 10:1 • Narrow band compressor: Attack - 1ms - 44ms (depending on frequency range) Release - 5ms - 219ms (depending on frequency range) • Wideband compressor:Attack - 5ms; Release - 50ms • Soft-saturation limiter (will be described below) • Up to 200mV output level • Up to 2 x 30mW(32 Ω load) “MON”output power • 12-band graphic equalizer with center frequencies: • 90/150/220/300/430/600/850/1200/1700/2400/3300/4700 Hz • Equalizer level adjustment range ± 15db • Switchable processor Echo effects with multipath emulation: Adjustable echo level 0 to -20db, 1dB step, Duration:5-100%, 5% step • Roger function (end of transmission tone marker): Adjustable sine wave tone frequency Duration : 150ms • Real time output spectrum monitor: Dynamic range: 50dB • Fast Fourier transform points: 256 • 4 operating modes: Bypass/Normal/DX/Wide • 4 presets with independent parameter set • PTT function, accepted for Up / Down functions (not for all transceivers) • Input signal asymmetry meter (waveform unbalance) with +/-10dB range • Multi-stage phase shifter (to eliminate waveform umbalance). Stages: 0 - 32; Frequency: 50 - 1000 Hz. • Control - touch and with the help of rotation / pressing the encoder. • Supply voltage - 4.5-5.5V • Maximum consumption current -500mA • Maximum dimensions of the case -170 x 90 x 80 mm (without cable and connectors) • Weight - 0.63kg • User interface based on uGUI library Detailed description on the: Worldwide website - https://ur6qw.jimdofree.com/eq-v-8/ European website - https://ssbhifi.com/product/12-band-eq-8pin-connection/
