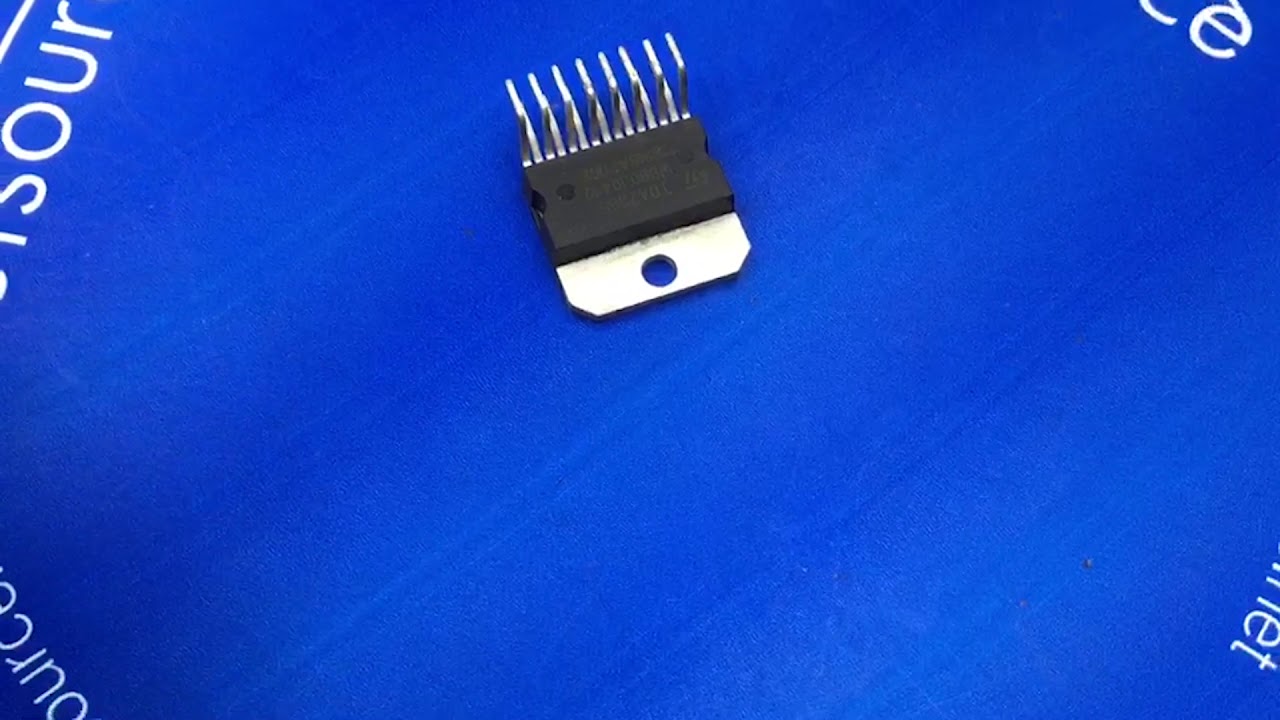

TDA7365
Online Store: https://www.utsource.net Product Link:https://www.utsource.net/itm/p/192808.html ● OUTPUT POWER 2x6W/4Ω @14.4V, 1KHz, 10% ● SOLID STATE POWER SWITCH INCLUDED (1A @ VDROP = 0.8V Typ.) ● MINIMUM EXTERNAL COMPONENT COUNT - INTERNALLY FIXED GAIN (40dB) - NO BOOTSTRAP CAPACITORS - NO EXTERNAL COMPENSATION ● ST-BY FUNCTION (CMOS COMPATIBLE) ● MUTE FUNCTION (CMOS COMPATIBLE) ● NO AUDIBLE POP DURING MUTE/ST-BY OPERATIONS ● LOW SUPPLY SELF MUTING PROTECTIONS ● AC AUDIO OUTPUTS SHORT CIRCUIT TO GND ● DC AUDIO OUTPUTS SHORT CIRCUIT TO GND AND TO Vs AT POWER ON ● SWITCH OUTPUT INTERNAL CURRENT LIMITATION ● OVERRATING CHIP TEMPERATURE WITH SOFT THERMAL LIMITER ● LOAD DUMP ● FORTUITOUS OPEN GND ● REVERSE BATTERY ● ESD DESCRIPTION The TDA7365 is a new technologyDual Audio Amplifier in Multiwatt15 package especially designed for stereo car radio applications. Thanks to the fully complementary output configuration the TDA7365 delivers a rail to rail voltage swing with no need of boostrap capacitors It includes a solid state switch, enabledby a ST-BY function common to the audio section, suitable for supplying both the signal processing part of the car radio set and the lamps. As a results the power-on operation is simplified, thereby saving cost and space in the whole power section. Utsource offer high-quality products, competitive price with convenient shipping. Know more about Utsource：https://www.youtube.com/watch?v=tmJQq0FS9y8 Subscribe to Utsource channel: https://www.youtube.com/channel/UCsWmWwb0S68rruOf8ebN8JQ/featured Contact us:Email: sales@utsource.com Follow us: Facebook: https://www.facebook.com/utsource.net Twitter: https://twitter.com/pantiejun LinkedIn: https://www.linkedin.com/company/utsource/ ВКонтакте: https://vk.com/utsource Instagram: https://www.instagram.com/utsource_official/ Pinterest: https://www.pinterest.com/bestutsource
