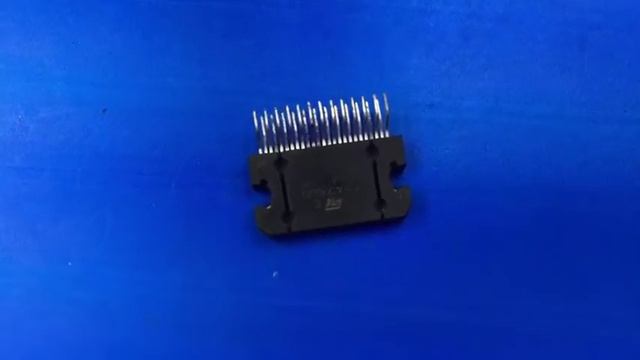

TDA7560
Online Store: https://www.utsource.net Product Link:https://www.utsource.net/itm/p/977245.html DESCRIPTION The TDA7560 is a breakthrough BCD (Bipolar /CMOS / DMOS) technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high power car radio The fully complementary P-Channel/N-Channel output structure allows a rail to rail output voltage swing which, combined with high output current and minimised saturation losses sets new power references in the car-radio field, with unparalleled distortion performances. ● SUPERIOR OUTPUT POWER CAPABILITY: 4 x 50W/4Ω MAX. 4 x 45W/4Ω EIAJ 4 x 30W/4Ω @ 14.4V, 1KHz, 10% 4 x 80W/2Ω MAX. 4 x 77W/2Ω EIAJ 4 x 55W/2Ω @ 14.4V, 1KHz, 10% ● EXCELLENT 2Ω DRIVING CAPABILITY ● HI-FI CLASS DISTORTION ● LOW OUTPUT NOISE ● ST-BY FUNCTION ● MUTE FUNCTION ● AUTOMUTE AT MIN. SUPPLY VOLTAGE DETECTION ● LOW EXTERNAL COMPONENT COUNT: – INTERNALLY FIXED GAIN (26dB) – NO EXTERNAL COMPENSATION – NO BOOTSTRAP CAPACITORS ● ON BOARD 0.35A HIGH SIDE DRIVER PROTECTIONS: ● OUTPUT SHORT CIRCUIT TO GND, TO VS, ACROSS THE LOAD ● VERY INDUCTIVE LOADS ● OVERRATING CHIP TEMPERATURE WITH SOFT THERMAL LIMITER ● LOAD DUMP VOLTAGE ● FORTUITOUS OPEN GND ● REVERSED BATTERY ● ESD Utsource offer high-quality products, competitive price with convenient shipping. Know more about Utsource: https://www.youtube.com/watch?v=tmJQq0FS9y8 Subscribe to Utsource channel: https://www.youtube.com/channel/UCsWmWwb0S68rruOf8ebN8JQ/featured Contact us:Email: sales@utsource.com Follow us: Facebook: https://www.facebook.com/utsource.net Twitter: https://twitter.com/pantiejun LinkedIn: https://www.linkedin.com/company/utsource/ ВКонтакте: https://vk.com/utsource Instagram: https://www.instagram.com/utsource_official/ Pinterest: https://www.pinterest.com/bestutsource
